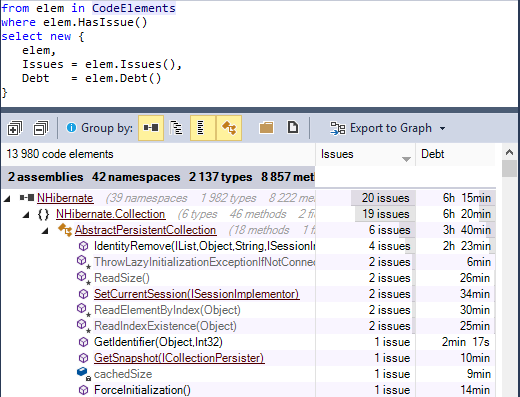

A code query can now return code elements of various kinds such as assemblies, namespaces, types, methods and fields.
Thanks to this, new queryable domains are available including CodeElements ANTMF ; CodeElementParents ANT ; TypesAndMembers TMF ; Members MF ; CodeContainers ANTM ; AttributeTargets ATMF ; where Assemblies, Namespaces, Types, Methods, Fields.
Improved query edit experience including:
- PageUp/PageDown and dot supported on completion items list
- smart query results column width auto-adjustment
- no more flickering on query result row sorting.
All default rules now include debt/interest estimation formulas that offer real-world estimations of the technical-debt, out of the box. If needed, these formulas can be easily customized.
Typically rules related to poor coverage, poor quality and poor structure are the highest source of technical-debt.
This new major version of JArchitect offers full support for Java 8.

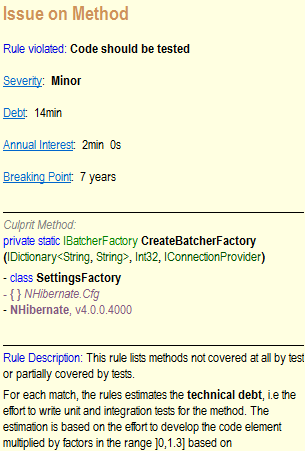

Issues of a rule now have a severity level in the blocker, critical, major, minor, info range.
The annual-interest is a measure of an issues severity. The severity and the annual-interest represent the same concept where the annual-interest is a continuous measure while the severity is a discrete measure.

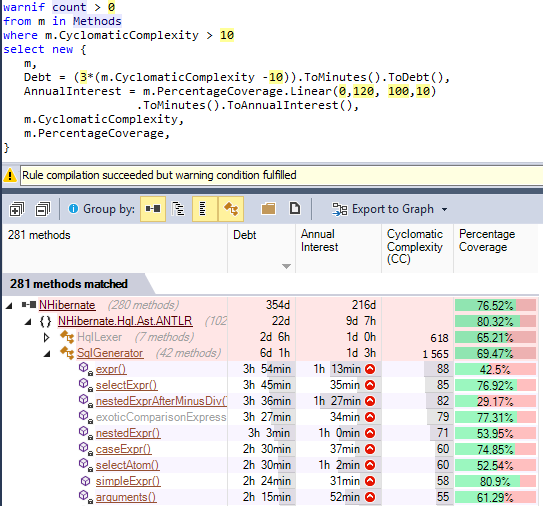

For example the rule below matches methods which are too complex. The technical debt is linear to the methods excessive complexity and the annuel-interest is linear to the methods code coverage by tests (10 minutes per year for 100% coverage, 2 hours per year for 0% coverage).
All default rules now have these debt/interest formulas which offer real-world estimations, out of the box. If needed, these formulas can be easily customized.

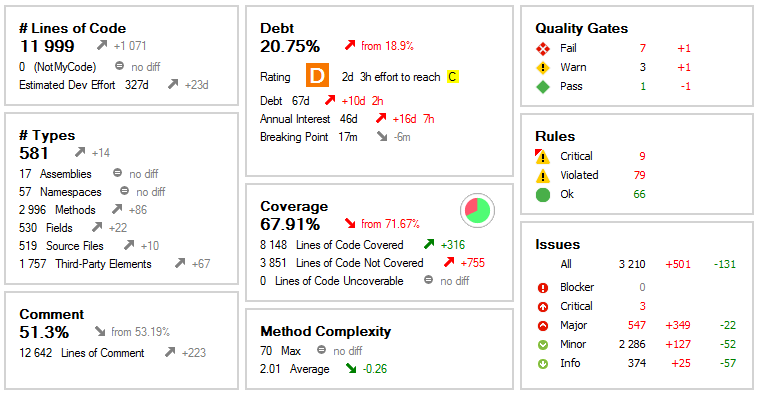

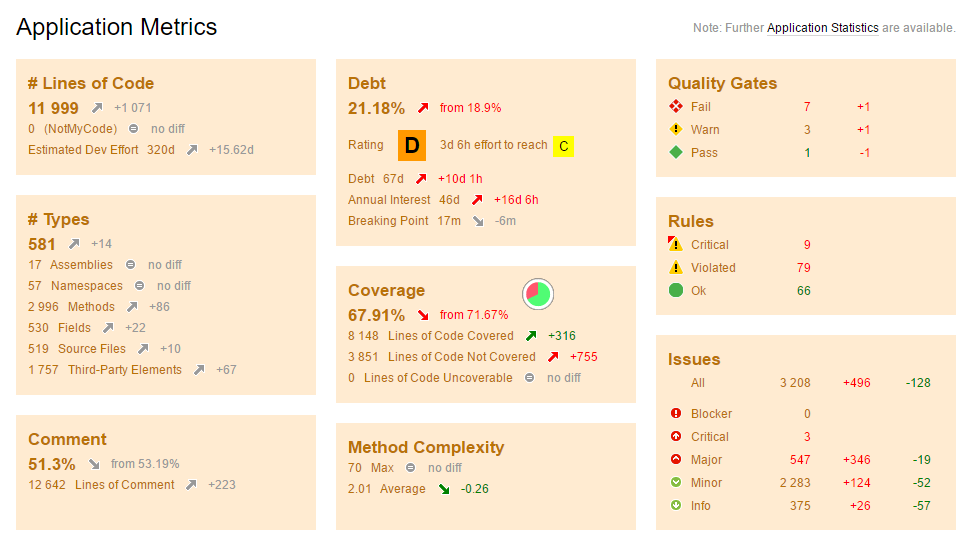

The dashboard now shows estimated Debt values and evolution since baseline.
This dashboard is available in the JArchitect IDE and in generated reports.

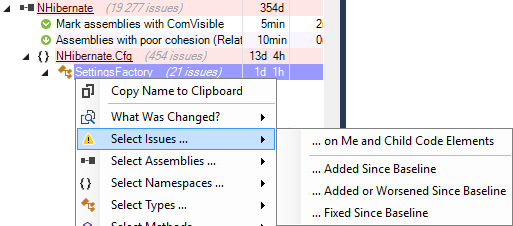

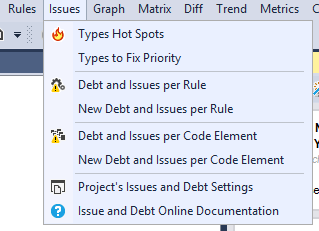

Many facilities are proposed from the dashboard to query/sort/filter/group... the debt estimated values and the issues set.

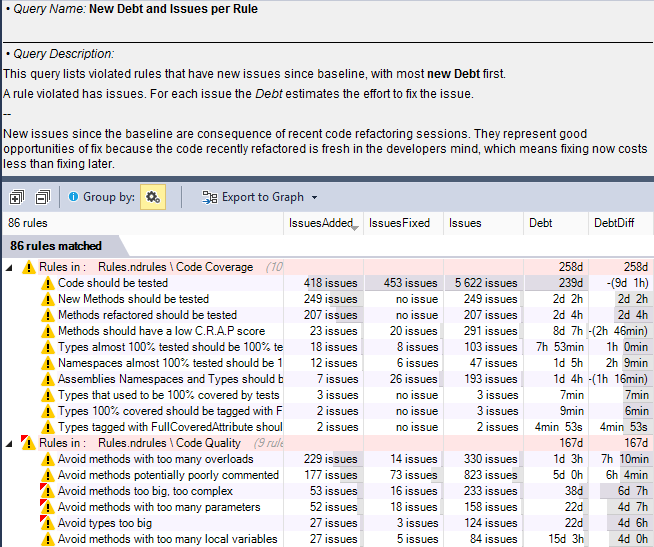

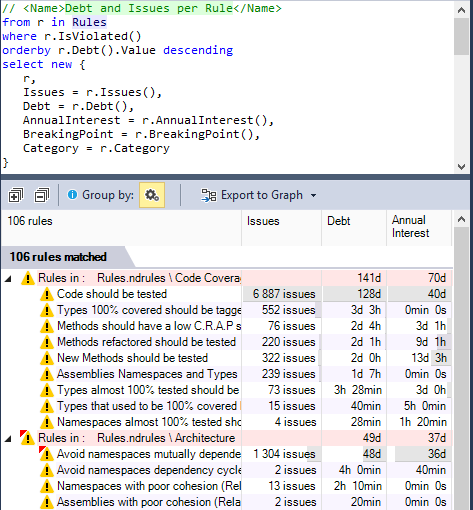

These facilities include sorting debt and issues per rule or per code element, focusing on new and fixed debt since baseline and issues to fix by priority heuristics.

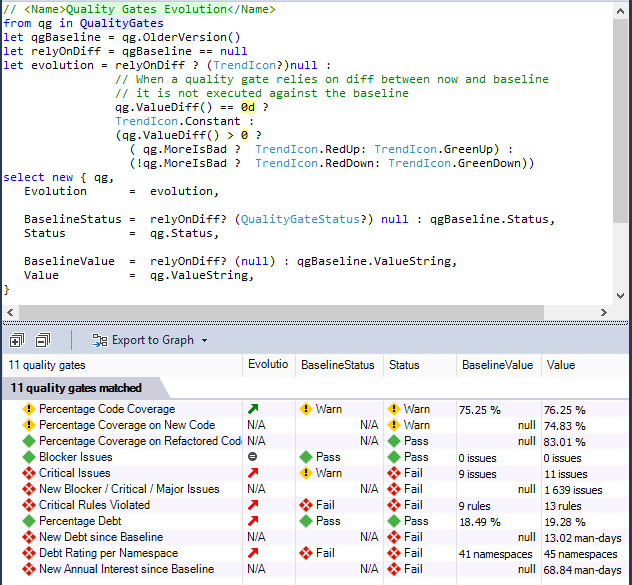

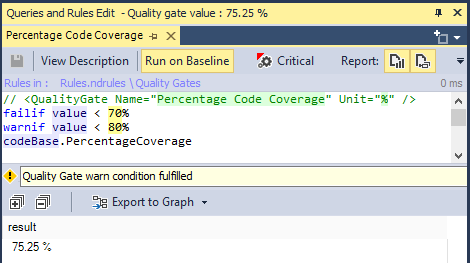

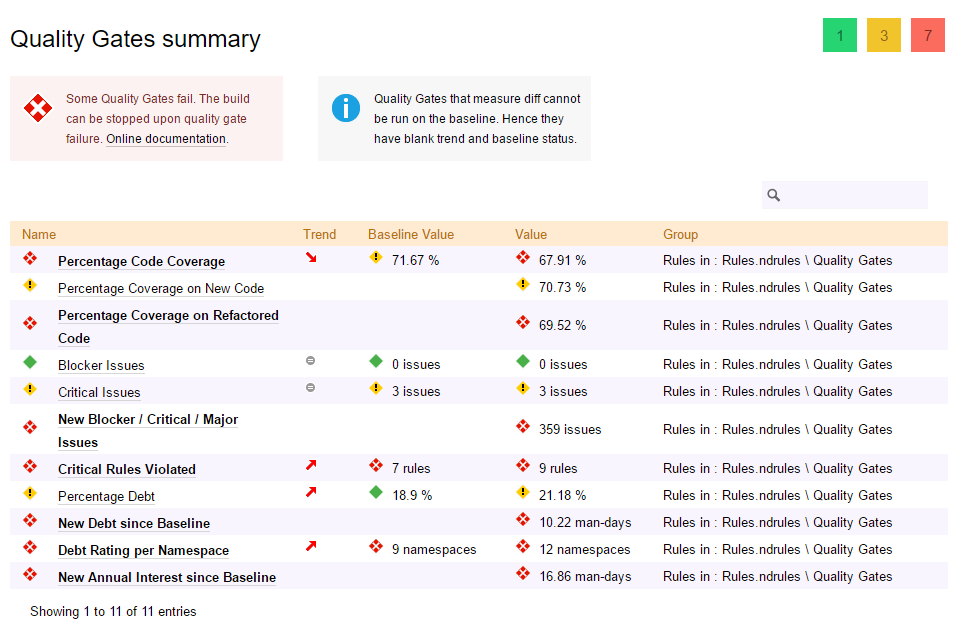

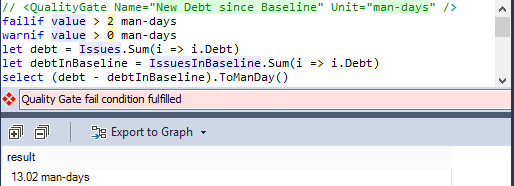

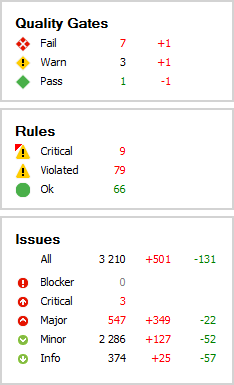

Customizable Quality Gates are now available to define excessive thresholds over debt estimations that might induce build failure and prevent checkin.
Customizable trend metrics are now available to measure debt trending.
The key is to offer comprehensive sets of actionable results.

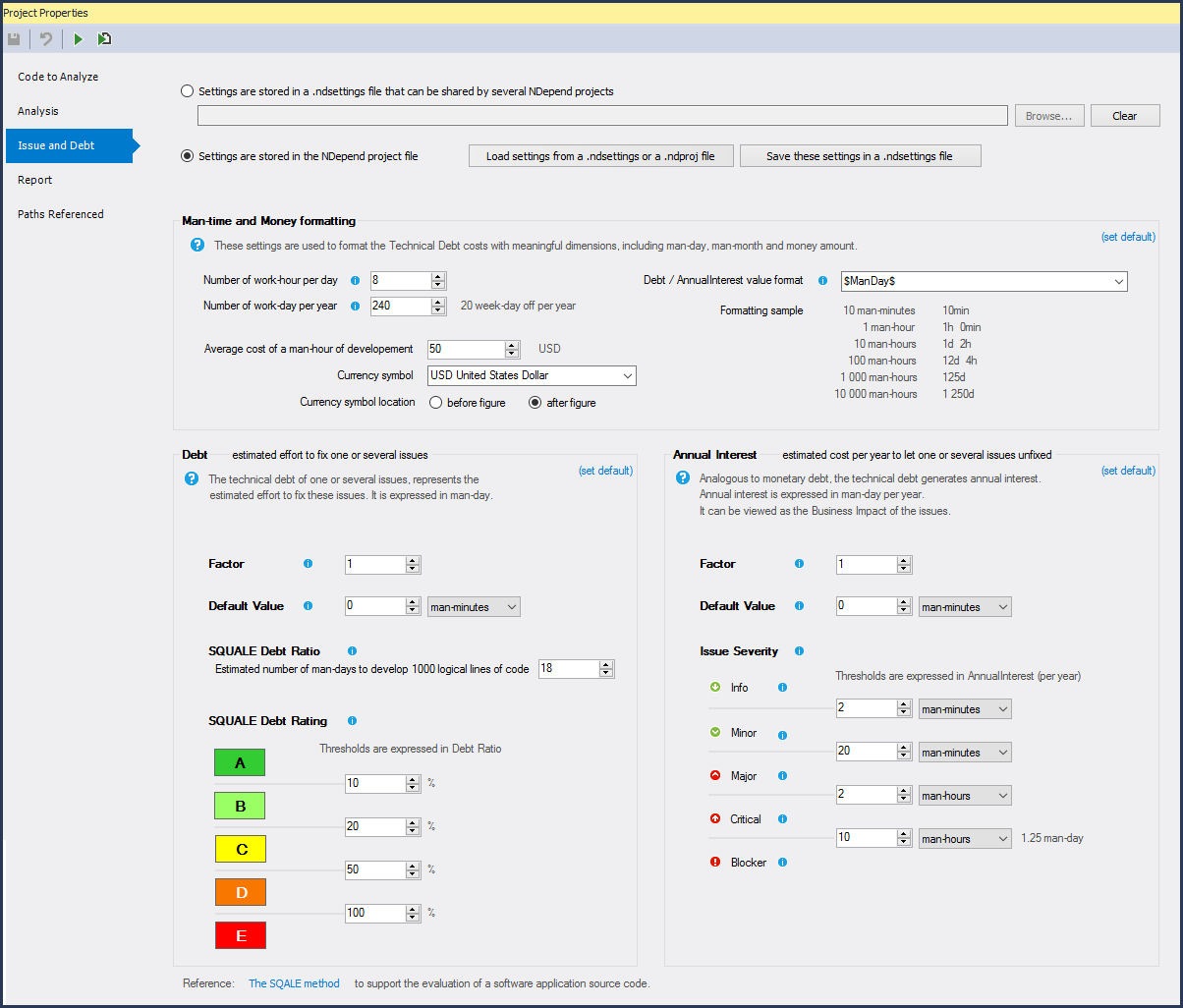

The JArchitect project properties now has a Debt and Issues panel to customize all technical debt computation aspects.
This includes estimated Debt and Interest values conversion from man-time to cost estimation.
This also includes Debt Ratio and SQALE Debt Rating on a code element (as defined by the SQALE method). These are expressed in percentage of the estimated technical-debt compared to the estimated effort it would take to rewrite the code element from scratch.
Debt settings can also be shared among different JArchitect projects.
Code base diff, rules, issues and quality gates are then recomputed in a few seconds.
Any newly created project now has the baseline settings set to 30 days ago per default.
As a consequence, the stored baseline with the date closest to 30 days ago is applied.
The first analysis result of a project is compared with itself since no other result can be used as the baseline.

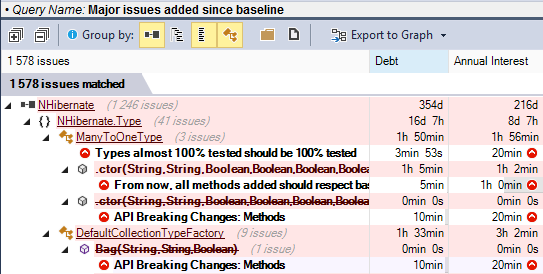

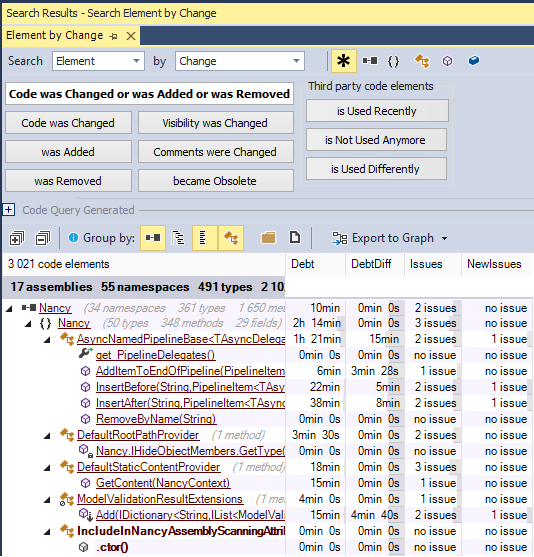

The search panel can now match all code elements added, refactored or removed since baseline.
The results also show debt and issues information.
This perspective is ideal to browse changes and issues introduced since baseline.

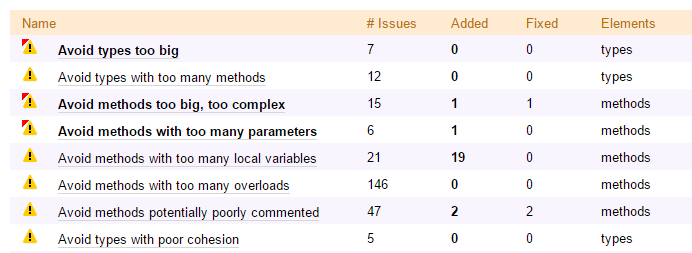

New issues since baseline are shown first in the rule results.

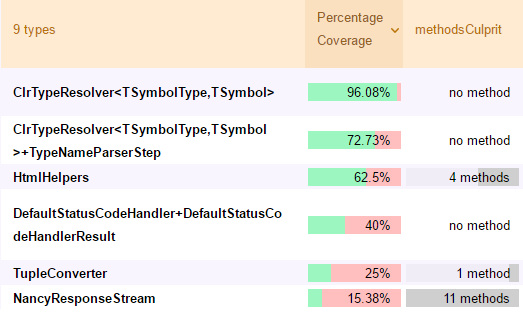

A colour scale is now shown on values making it easier to compare them at a glance.

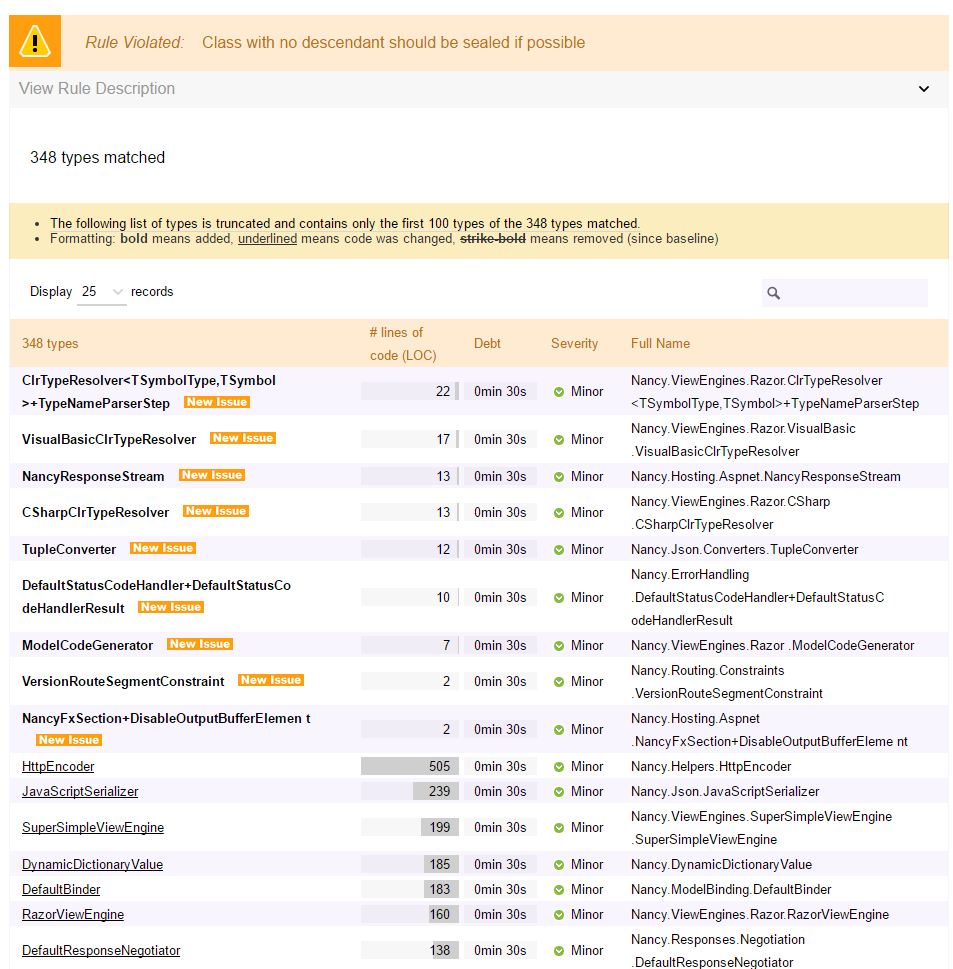

Different fonts are used to highlight changes in code elements since baseline: bold font for added code, underlined for refactored code and bold striked for removed code.
With JArchitect, software quality can be measured using Code Metrics, visualized using Graphs and Treemaps, and enforced using standard and custom Rules.
